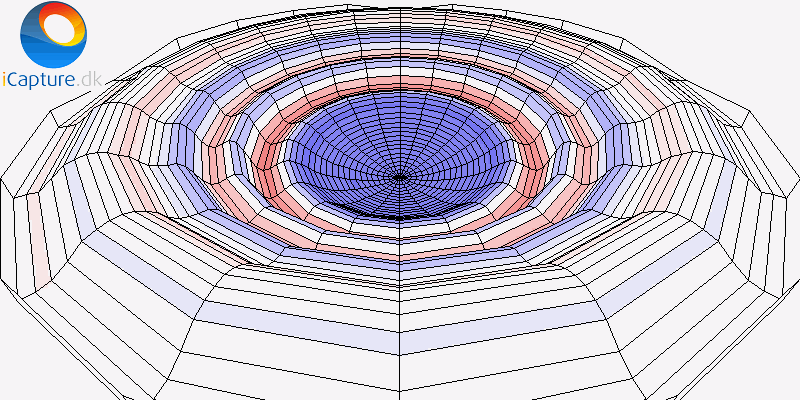

Visualization of resonant cone behavior after "Scanning" FEA data using Klippel Scanner Software

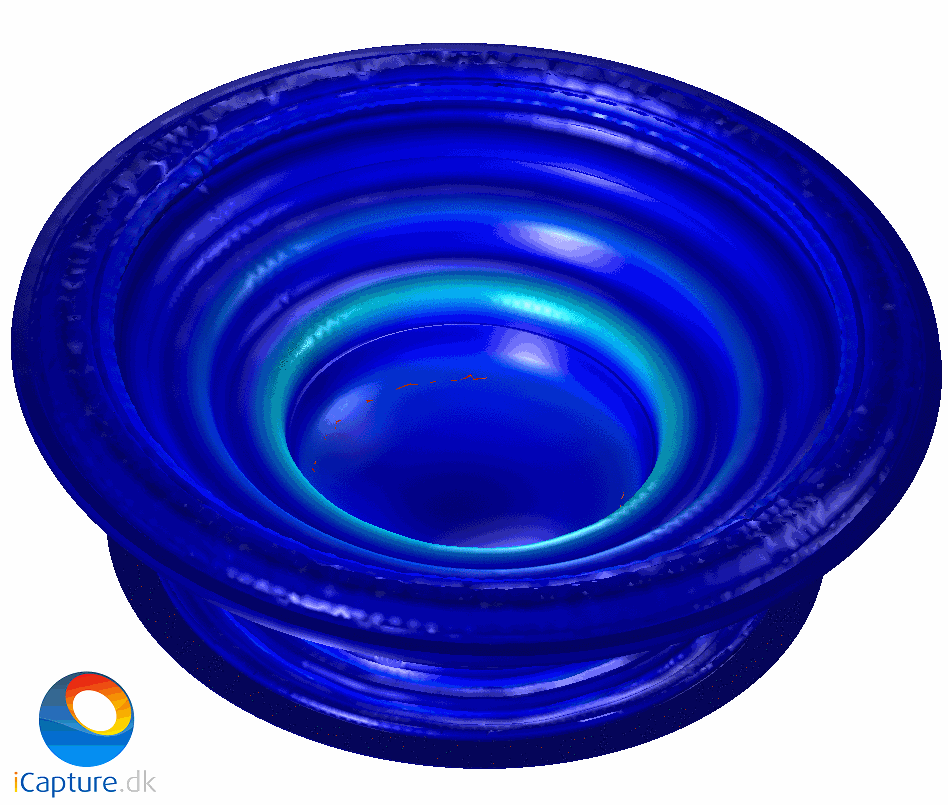

Modal Behavior of a 6" woofer at 11 kHz as modeled and viewed in COMSOL

For more technical information, see the app note here.

To download FEA2SCN COMSOL example files, click here.

To download FEA2SCN ANSYS example files, click here.

For information on purchasing, click here.

FEA2SCN is a software module that integrates with the Klippel Scanner.  It is a state-of-the-art tool that facilitates visualization of acoustic FEA models while dramatically reducing their complexity and run times.  The tool can be applied to any acoustic model that is based in an infinite baffle.   It even allows for an integrated T/S lumped parameter model so modeling the motor parts can be simplified as well.

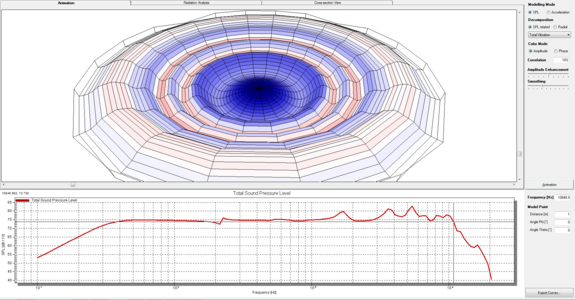

Visualization and calculation of frequency response after "Scanning" FEA data using Klippel Scanner Software
