Compression Driver modeled on Plane Wave Tube

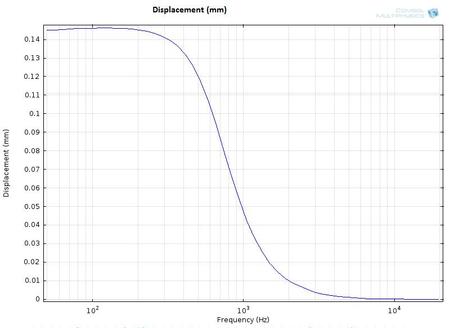

Voice coil displacement vs. frequency.

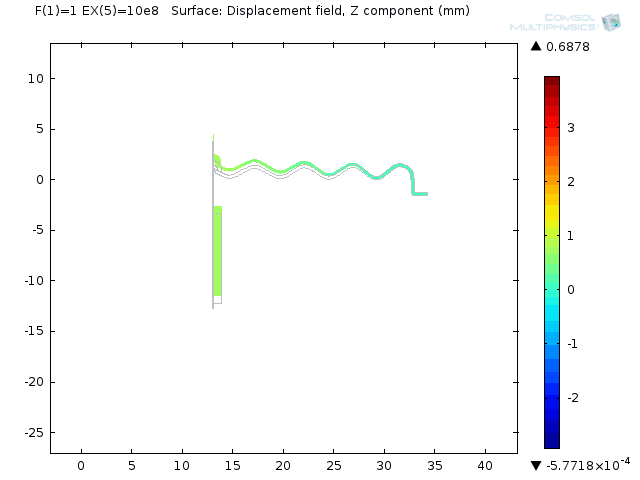

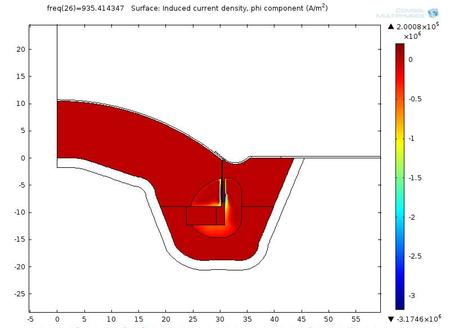

Induce Current Density In Motor.  935 Hz.

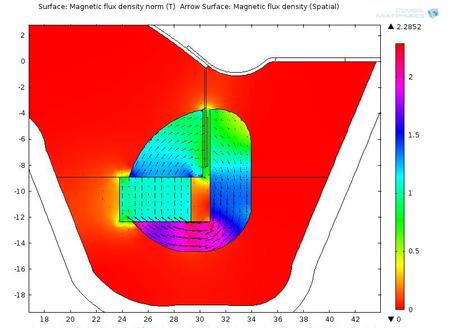

Static flux density in motor gap.

Axi-symmetric model of a 3" mid-range dome driver in a baffle

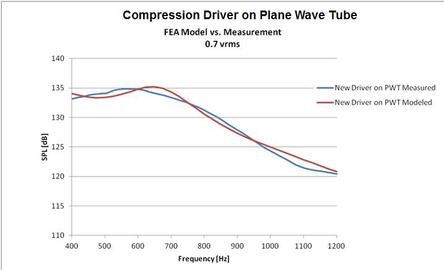

Frequency response of above.  Good agreement between model and measurement over the band of interest.

Finite Element Analysis has been a True Technologies core focus since 1990. With the use of the powerful COMSOL Multiphysics modeling tools, our ability to guide our customers to market along the shortest development path is what makes us competitive. We can support your team with complete turnkey modeling solutions or with advice and training to bring your staff up to speed on the use of the state-of-the-art COMSOL FEA Multiphysics simulations.

True Technologies is proud to be a Certified COMSOL Consultant.  Talk to us about how we can help you optimize your products.

Acoustics

  • Transducer performance and radiation characteristics
  • Room and multi-device interaction
  • Sophisticated enclosure design


Electromagnetics

  • Coil/Motor Optimization – Drive force linearity and symmetry
  • AC Impedance response predictions
  • Distortion mechanism analysis


Structural Mechanics

  • Transducer suspension linearity and symmetry
  • Stess analysis – brackets, glue joints, moving parts, etc.
  • Distortion mechanism analysis




Loudspeaker Spider Analysis

Finite Element Modeling

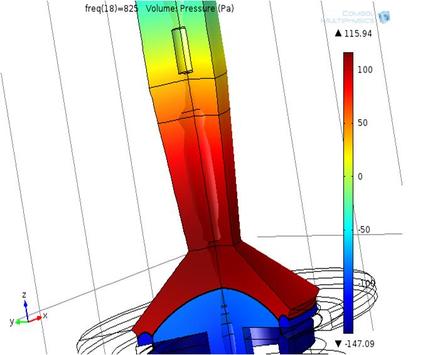

 Acoustic pressure in the compression chamber and plane wave tube at 825 Hz.

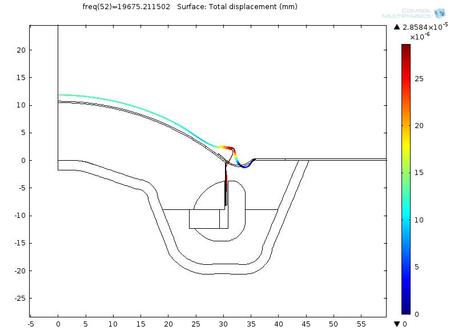

Deformed structure at 19kHz.

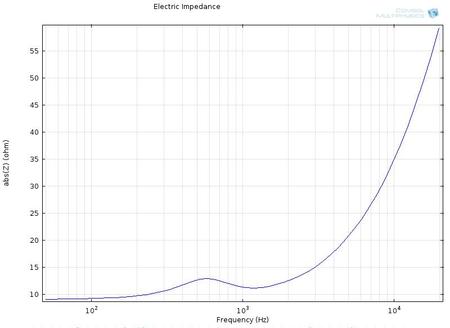

Impedance response.

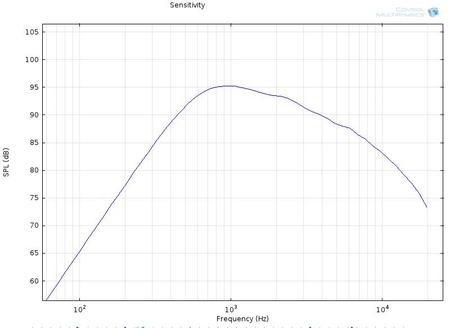

Frequency response predicted at 1 meter/on axis

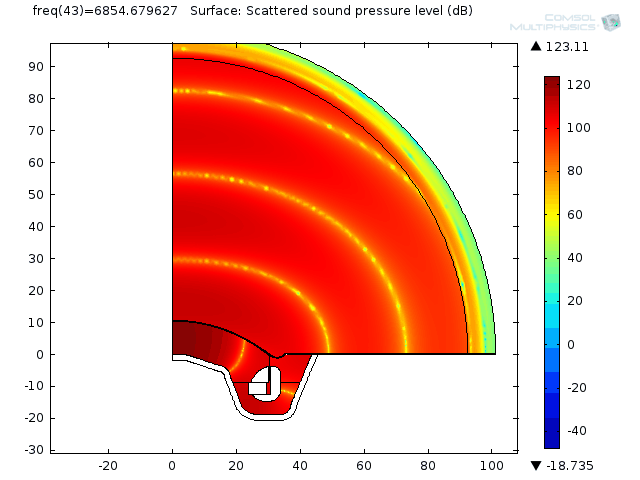

Instantaneous sound pressure at 6.9kHz

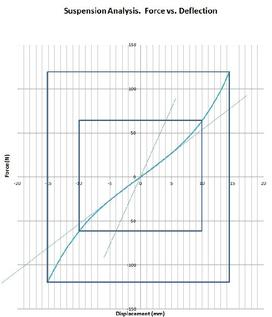

Structural Mechanics Model Considering Geometric Non-Linearity. Design for symmetry and optimized linearity range.
